Triaxial Gyroscope and Inclinometer, 3 Gyroscopes, 2 M12, SAE J1939
Triaxial Gyroscope and Inclinometer, 3 Gyroscopes, 2 M12, SAE J1939

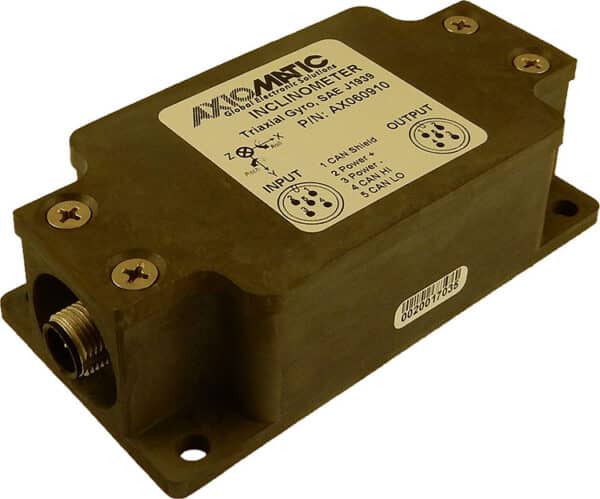

Item # AX060910 — Triaxial Gyroscope and Inclinometer, 3 Gyroscopes, 2 M12, SAE J1939
The unit measures pitch and roll inclination angles in a full ±180 degree orientation range. The angles can be compensated by a 3D or 1D gyroscope to minimize the influence of dynamic linear accelerations caused by vibrations and machine operational movements. The unit can also output gravity angle; pitch, roll and yaw angular rates (the 1DG version – only roll angular rate) and unit accelerations in three orthogonal directions. The inclinometer transmits angular data over CAN bus using a standard J1939 protocol. The unit original configuration can be changed using Axiomatic Electronic Assistant PC-based configuration tool.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Downloads
Datasheet
User Manual
2D Drawing
Step Files (3D)
Compliance
Related Products
High Performance Triaxial Inclinometer, SAE J1939, 1 DT13-4P Connector, Integral CAN Termination
Center Bonded Mounts
Center Bonded Mounts STA Series
