Item # AX140970K — KIT (AX140970 Dual CAN FD to Ethernet Converter, 1x AX070531 Unterminated Leads Ethernet Cable, 2x AX070532 Unterminated Leads CAN Cable)

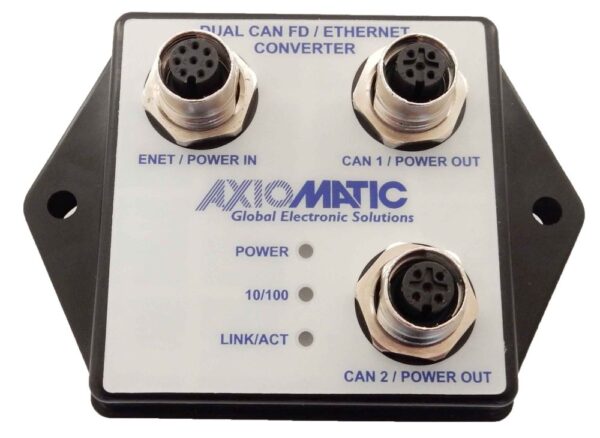

The Dual CAN FD to Ethernet Converter is a simple device converting Classic CAN or CAN FD frames into UDP or TCP IP datagrams and sending them over the Ethernet network. The device can also convert UDP or TCP datagrams into Classic CAN or CAN FD frames and transmit them through any of the two CAN FD ports.
The converter has two galvanically isolated independent CAN FD ports and one Ethernet port. The CAN FD ports support High-Speed Classic CAN with data rate up to 1Mbit/s or CAN FD with data rate up to 8 Mbit/s. The Fast Ethernet port provides up to 100Mbit/s data rate.
All types of Classic CAN and CAN FD frames are supported. CAN FD ports can operate either in ISO or in Bosch frame format in the Flexible Data-rate (FD) mode.
The power can be passed through to the CAN port connector. Protection is provided.
The converter contains a web server to setup configuration parameters and monitor the internal state of the converter using a web browser. The user can also update the converter firmware using the web browser.
A simple command-line AxioDisc.exe Windows application is provided to locate a converter on the LAN.
To ensure low latency in processing CAN and Ethernet messages, the converter software runs under control of a real-time operating system.
The Dual CAN FD to Ethernet Converter can be purchased together with one AX070531 and two AX070532 cables as a kit under P/N AX140970K.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Downloads
Datasheet
User Manual
User Manual
User Manual
2D Drawing
Compliance
Compliance
