KIT (AX080911K Converter, WH-DT06-4S-S-16AWG-2M Wire Harness)
KIT (AX080911K Converter, WH-DT06-4S-S-16AWG-2M Wire Harness)
Item # AX080911K — KIT (AX080911K Converter, WH-DT06-4S-S-16AWG-2M Wire Harness)

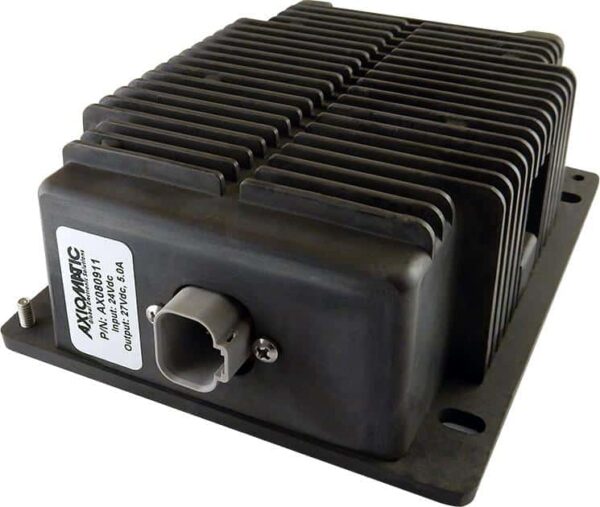

This DC/DC converter accepts 12 or 24VDC input and outputs 27VDC. Designed for use in the harshest conditions, this unit is housed in an IP67 rated enclosure and has thermal protection for over temperature, reverse battery, over and under-voltage protection, and short circuit and overcurrent protection. It is designed to meet the requirements of SAE J1455 and SAE J1113 and is suitable for engine cranking and load dump. It has a typical efficiency of 91%.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
