High Speed Automotive Ethernet/Ethernet Converter
High Speed Automotive Ethernet/Ethernet Converter

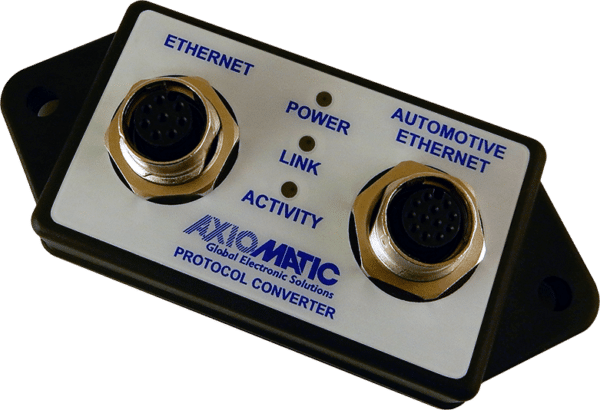

Item # AX141520 — High Speed Automotive Ethernet/Ethernet Converter
The Axiomatic high-speed Automotive Ethernet to Ethernet converter provides a purely physical, bi-directional conversion between Automotive Ethernet (100BASE-T1, 1000BASE-T1), and Ethernet (1000BASE-T, 100BASE-TX) via PHY transceivers. The converter supports Automotive Ethernet baud rates of 100 Mbit/s and 1 Gbit/s (1000 Mbit/s) and an Ethernet baud rate of 100o Mbit/s (1 Gbit/s). Status LEDs provide information on connection link, and communication. The converter is designed for the harsh environments of off-highway and industrial equipment. Automotive Ethernet networks use a 2 wire, twisted pair cable. Using Automotive Ethernet saves cabling costs for the machine builder.
The AX141520 converter features Slave mode as the default configuration for Automotive Ethernet, however, the Master/Slave functionality is user configurable via the RS-232 port. The Master mode works if the connected device has its transceiver set to Slave mode. The Slave mode works when the connected device has its transceiver set to Master mode. Hard setting the Master/Slave relationship saves on setup-time costs and ensures that the Automotive Ethernet link is established quickly. As a comparison, regular Ethernet converters rely on auto-negotiation to determine Master and Slave.
To purchase the AX141520 High Speed Automotive Ethernet/Ethernet Converter as a kit with mating connectors, please visit: https://www.axiomatic.com/product/kit-ax141520-high-speed-automotive-ethernetethernet-converter-ax070533-unterminated-leads-can-cable-ax070535-ethernet-cable-ax141520k/
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Downloads
Datasheet
User Manual
2D Drawing
EDS File
STEP File
Compliance
Related Products
Gigabit Automotive Ethernet / Gigabit Ethernet Converter, X- & A-Coded Connectors, Dedicated Power Connector
Gigabit Automotive Ethernet / Gigabit Ethernet Converter, X-Coded Connectors, Dedicated Power Connector
KIT (AX140970 Dual CAN FD to Ethernet Converter, 1x AX070531 Unterminated Leads Ethernet Cable, 2x AX070532 Unterminated Leads CAN Cable)
KIT (AX142100A Protocol Converter, Ethernet/RS-422/2 RS-232/CAN (SAE J1939), AX070533 Cable, AX070531 Cable)
KIT (AX140900RST CAN/Ethernet Converter, AX070531 Ethernet and Power Cable and AX070532 CAN Cable)
KIT (AX140900 CAN/Ethernet Converter, AX070531 Ethernet and Power Cable and AX070532 CAN Cable)
Center Bonded Mounts
Center Bonded Mounts STA Series
