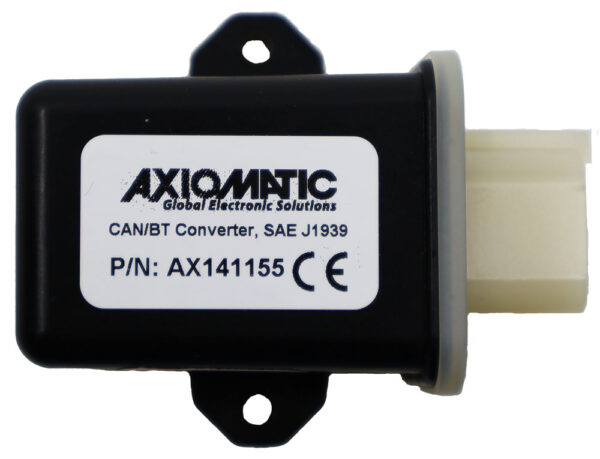

CAN/Bluetooth LE V5.2 Converter, Apple iOS and Android Interface
Item # AX141155 — CAN/Bluetooth LE V5.2 Converter, Apple iOS and Android Interface
The CAN-Bluetooth Converter transfers wireless data to a PC, smartphone, display, or tablet. The setpoints are configurable using the CAN2BLE Configuration Android or Apple iOS application. It has rugged packaging and performance for IP67, high vibration and off-highway machine environments.
SAE J1939 is the CAN bus protocol for operation in interface mode. However, the CAN-Bluetooth Converter also handles CAN frames with standard IDs for operation in bridge mode. It features auto-baud-rate detection. The device supports Bluetooth® Low Energy (BLE) standards. The CAN-Bluetooth devices can be used as a pair for creating a bridge for CAN data.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
The CAN-Bluetooth Converter transfers wireless data to a PC, smartphone, display, or tablet. The setpoints are configurable using the CAN2BLE Configuration Android or Apple iOS application. It has rugged packaging and performance for IP67, high vibration and off-highway machine environments.
SAE J1939 is the CAN bus protocol for operation in interface mode. However, the CAN-Bluetooth Converter also handles CAN frames with standard IDs for operation in bridge mode. It features auto-baud-rate detection. The device supports Bluetooth® Low Energy (BLE) standards. The CAN-Bluetooth devices can be used as a pair for creating a bridge for CAN data.
Technical Specifications
CAN/Bluetooth LE V5.2 Converter, Apple iOS and Android Interface
Order Code
P/N: AX141155
CAN Port(s)
1 CAN port (SAE J1939), Configurable Baud Rate
Bluetooth
Bluetooth® LE V5.2 compliant
Operating Voltage
12VDC or 24VDC or 48VDC (6...80 VDC)
Enclosure
Molded Enclosure, Laser welded
Nylon 6/6, 30% glass
Integral 6-pin connector
3.02 x 2.41 x 1.41 inches
77 x 61 x 36 mm (L X W X H)
Connection(s)
6-pin connector (equivalent TE Deutsch P/N: DT04-6P)
Protection Rating
IP67
Operating Temperature
-30 to 85 ºC
-22 to 185 ºF
Applications
Off-highway equipment
Accessories
AX070119, Mating Plug Kit (DT06-6S, W6S, 6 Contacts)
CAN2BLE Configuration Application for Android devices
CAN2BLE Configuration Application for iOS devices
Datasheet
User Manual
2D Drawing
Step Files (3D)
