Drive hydraulic valves cost effectively from your machine CAN control network with the new Axiomatic controller, the CAN bus to 1 Valve Driver. Read analog sensors with the 1 Universal Signal Input with CAN I/O controller.
Axiomatic announces the release of a new SAE J1939 or CANopen® valve driver and I/O control, part numbers AX022200 and AX030530 respectively. These controllers are part of a growing line of low cost and compact rugged distributed I/O controls packaged for harsh operating environments.

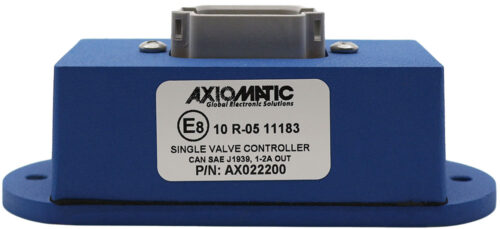

CAN bus to 1 Valve Driver
Features:
Model AX022200:
- 1 Valve Driver Output
- 1 proportional output up to 2A
- Or a configurable on/off output up to 3A
- 12V or 24VDC input power (nominal) with rugged surge protection
- 1 CAN (SAE J1939) port – CANopen® on request
- Rugged IP67 packaging and connectors
- Programmable with PC-based Axiomatic Electronic Assistant

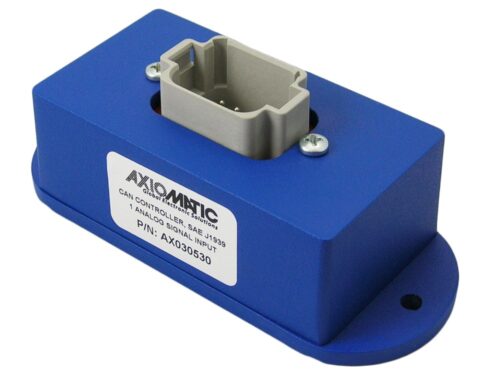

SINGLE CHANNEL I/O with CAN bus
Features:
Model AX030530:
- 1 Universal Analog Signal Input (Voltage, Current, Resistive, Digital, Frequency or PWM)
- User selectable input range from: 0-1V; 0-2.5V; 0-5V; 0-10V; 0-20mA; 4-20 mA; 20 Ohms to 250 kOhms; 10Hz –1 kHz; or 100 Hz – 10 kHz.
- 12V/24V/48VDC input power (nominal) with rugged surge protection
- Galvanic isolation between power supply and analog signal output
- 1 SAE J1939 port
- Rugged IP67 packaging and connectors
- Programmable with PC-based Axiomatic Electronic Assistant
Applications (both P/Ns):
- Distributed controls for commercial vehicles, off-highway equipment, industrial equipment, etc.
- Distributed controls for power generation, co-generation, stationary power.
Note:
Electronic Assistant® is a registered trademark of Axiomatic Technologies Corporation.
