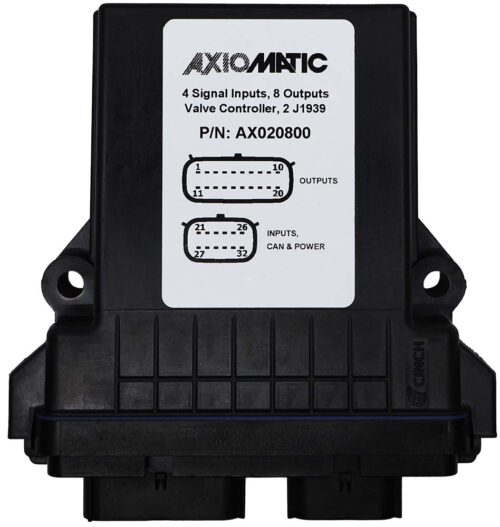

The AX020800 valve controller accepts 4 Universal Command Signal Inputs as Voltage (0-5, 0-10V), Current (0-20, 4-20mA), Frequency/PWM (0-10kHz), Digital, or Resistive (up to 250kOhms) types from sensors, joysticks, switches or pushbuttons.
The device interfaces with 2 SAE J1939 CAN networks using auto-baud-rate detection and utilizes a Wake-on-CAN function to save on power.
Interfacing with machine battery power, it operates from 8 to 65VDC (12, 24, or 48V nominal).
The AX020800 provides 8 proportional half-bridge outputs capable of 3A to drive actuators, hydraulic valves or motors. It features high or low side driving.
The Valve Controller is applied on off-highway machines in distributed valve control CAN networked work functions.
It is designed for harsh environments with an IP67 rating. It operates from -40 to 85°C (-40 to 185°F).
Configuration is via the Axiomatic Electronic Assistant.
Visit https://www.axiomatic.com/product/4-signal-inputs-8-half-bridge-outputs-valve-controller-sae-j1939-ax020800/ for more details.
Contact: Amanda Wilkins, CMO
TEL: +1 905 602 9270 x224
[email protected]
A PDF version of this press release may be downloaded from: https://www.axiomatic.com/wp-content/uploads/pr-AX020800-march2025.pdf
