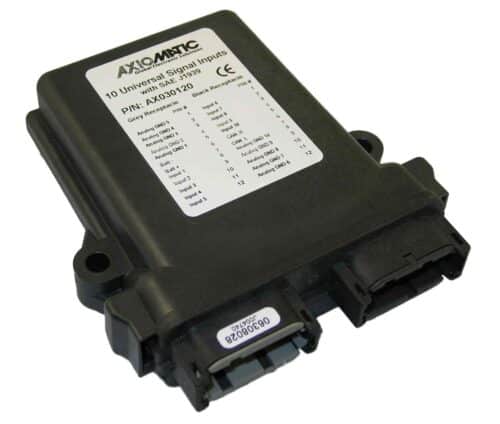

The new 10 Universal Signal Inputs to CAN Controller adds flexibility to our line of rugged I /O controllers
Features:
- 10 universal signal inputs,
- A wide range of user selectable signal options (0-5 V, 0-10 V, 0-20 mA, 4-20 mA, PWM, Frequency, Counter, Digital),
- 12V, 24Vdc (nominal) power input,
- 1 CAN port (SAE J1939 or CANopen®),
- Rugged packaging and connectors (TE Deutsch),
- Standard control logic,
- CE mark,
- EMC Compliant,
- RoHS/REACH Compliant,
- MTBF reliability data available,
- User programmable functionality (Axiomatic Electronic Assistant)
- Simulink® block library available
- Software modifications provided to meet specific requirements
Functions:
The AX030120 module translates engine sensor information (vehicle speed, exhaust, emissions) into CAN messages for the engine control system.
Axiomatic designs and manufactures electronic machine controls, power converters, gateways and motor controls for the off-highway, on-highway, bus, electric vehicle, military, power generation, material handling, industrial and alternate energy markets. We provide efficient, innovative solutions that focus on adding value for our customers. We emphasize service and partnership with our customers, suppliers, and employees to build long term relationships and mutual trust.
Notes:
CANopen® is a registered community trade mark of CAN in Automation e.V.
Simulink® is a registered trademark of The Mathworks, Inc.
Contact: Amanda Wilkins, Sales and Marketing Manager
TEL: +1 905 602 9270 x224
amanda.wilkins@axiomatic.com
A PDF version of this press release may be downloaded from: https://www.axiomatic.com/wp-content/uploads/pr-AX030120-dec13.pdf.
Axiomatic introduces a line of rugged protocol converters to interface between CANbased diesel engine networks or automotive LIN networks.
Features:
- Up to 2 Isolated CAN ports (SAEJ1939, CANopen®)
- 1 Isolated SAE J1587 (SAE J1708) port
- Interface with LIN networks in automotive systems
- Convert SAE J2497 messages over Power Line
- Communications (a bidirectional, serial communications link over the vehicle power supply line)
- 12V, 24VDC nominal input power
- Compact, IP67 packaging, Integrated TE Deutsch connector
- CE mark
- EMC Compliant
- RoHS/REACH Compliant
- MTBF reliability data available
- User programmable functionality (via the Axiomatic Electronic Assistant)
- Simulink® block library available
- Software modifications provided to meet specific requirements
Functions:
- Connect legacy fieldbuses to modern SAE J1939 networked equipment
- Transfer and monitor engine data
- Communicate between tractors and trailers
- Monitor batteries in automotive control systems
Axiomatic designs and manufactures electronic machine controls, power converters, gateways and motor controls for the off-highway, on-highway, bus, electric vehicle, military, power generation, material handling, industrial and alternate energy markets. We provide efficient, innovative solutions that focus on adding value for our customers. We emphasize service and partnership with our customers, suppliers, and employees to build long term relationships and mutual trust.
Notes:
CANopen® is a registered community trade mark of CAN in Automation e.V.
Simulink® is a registered trademark of The Mathworks, Inc.
Contact: Amanda Wilkins, Sales and Marketing Manager
TEL: +1 905 602 9270 x224
amanda.wilkins@axiomatic.com
A PDF version of this press release may be downloaded from: https://www.axiomatic.com/wp-content/uploads/pr-CANgateways-oct13.pdf.

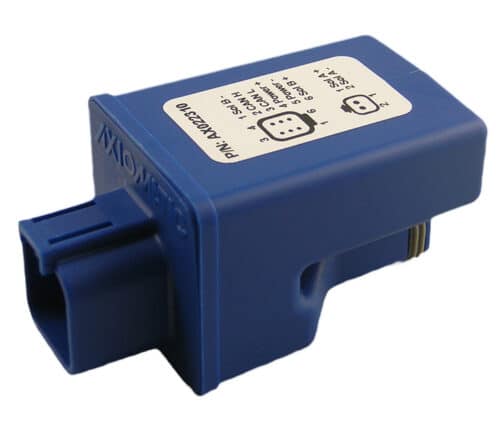

Axiomatic introduces a programmable Dual Plug-In 2.5A Valve Driver with SAE J1939
Features, Model AX022310:
- Configurable for 1 or 2 outputs to drive hydraulic valves (proportional 0-2.5A or on/off 2.5A)
- Superimposed dither
- Independent ramps (0-5 seconds)
- Fully protected outputs
- 12V, 24VDC nominal input power
- 1 CAN port (SAEJ1939) for integration into the machine’s CAN bus network
- Rugged IP67 packaging
- Integrated connectors to minimize wiring and reduce installation time
- Compact, Plug-in style for valve coils having the molded-in TE Deutsch DT04-2P electrical connector
- EMI/EMC Compliant
- User programmable functionality (Electronic Assistant for the SAE J1939 model)
Applications:
The hydraulic valve controller is designed to meet the rugged demands of mobile equipment, oil and gas equipment, agricultural and heavy duty industrial machine applications. It can be used for distributed control of the following:
- Flow or pressure control of single solenoid hydraulic valves
- Control of dual solenoid hydraulic valves
- Control of hydraulic fan drives
- Transmission control for accurate low-speed control of vehicles
Axiomatic provides electronic machine controls, components and systems to the off-highway, military, power generation, material handling, electric vehicle, industrial and alternate energy OEM markets. We provide efficient, innovative solutions that focus on adding value for our customers. We emphasize service and partnership with our customers, suppliers, and employees to build long term relationships and mutual trust.
Contact: Amanda Wilkins, Sales and Marketing Manager
TEL: +1 905 602 9270 x224
amanda.wilkins@axiomatic.com
A PDF version of this press release may be downloaded from: https://www.axiomatic.com/wp-content/uploads/pr-embeddedSAEJ1939-Jun13.pdf.

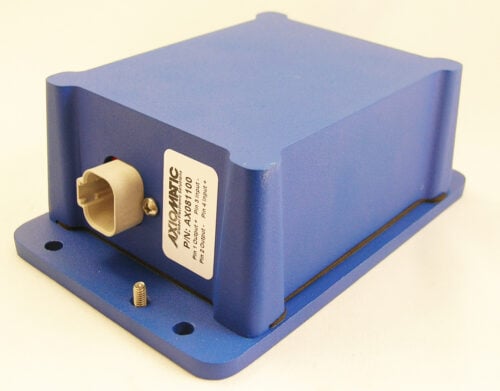

The Axiomatic 72W, 24V/24V DC converter stabilizes power for sensitive electronic devices in a battery powered control system.
Axiomatic releases a 72W 24V/24V DC power converter as part of our power control family. The AX081100 DC-DC Converter provides stable 24Vdc power to instrumentation and control devices regardless of battery condition. Electronic devices downstream are isolated from the battery and thereby protected against fluctuating input voltage which can affect their performance and reliability.
For operation under the most harsh and demanding conditions, the AX081100 converter is fully sealed and enclosed to protect against dirt and moisture. Power from a battery or other source in the range of 9-32Vdc (12Vdc or 24Vdc nominal) is converted to a 24Vdc output regulated to 0.4%. Input and output isolation is provided. The unit is designed with rugged surge and transient suppression in addition to sustained over/under voltage protection. The nominal nameplate rating is 72 Watts of output power. The DC-DC Converter has an efficiency rated at >88%.
Axiomatic designs rugged electronic and power controls for OEMs of off-highway, mining, oilfield services, electrical power generation, electric vehicle, bus, truck and military equipment. We provide efficient, innovative solutions that focus on adding value for our customers. We emphasize service and partnership with our customers, suppliers, and employees.
Contact: Amanda Wilkins, Sales and Marketing Manager
TEL: +1 905 602 9270 x224
amanda.wilkins@axiomatic.com
A PDF version of this press release may be downloaded from: https://www.axiomatic.com/wp-content/uploads/pr-AX081100-dec12.pdf.
A new Protocol Converter is released by Axiomatic
The AX140100 CAN gateway includes the following features:
- Acts as a gateway or interface between CAN buses with different baud rates and protocols (SAE J1939-SAE J1939 or SAE J1939-CANopen®)
- Fast data exchange between a CAN network (SAE J1939 or CANopen®) and a RS-485 bus (SAE J1587 or Modbus RTU)
- 2 Isolated CAN ports (CAN 2.0B)
- 1 Isolated RS-485 serial port
- Operational from 9 to 36VDC (12VDC, 24VDC nominal)
- Integrated TE Deutsch 12-pin connector
- Fully sealed enclosure with a rugged IP67 protection rating and compact size
- User configurable using the Axiomatic Electronic Assistant
- Simulink® Development Kit with block library is available in Model AX190000SDK
Applications can include:
- Mobile (Off-Highway) Equipment
- Transport Vehicles
- Power Genset Control Systems – Control Panels for Power Generation, Marine and Oil & Gas Applications
Axiomatic works with Simulink® as the software development platform for prototyping in OEM machine control applications. Simulink® is a model-based design tool for from The Mathworks®, Inc. It provides an interactive graphical environment and a customizable block library that lets Axiomatic design and implement application-specific control algorithms via embedded coding tools. Using Simulink®, the OEM machine designer is able to design the data conversion rules between the module interfaces using the Axiomatic Simulink library. The development kit includes SAEJ1939, CANopen®, Modbus RTU and J1587 protocols.
Axiomatic provides electronic machine controls, components and systems to the off-highway, military, power generation, material handling, electric vehicle, industrial and alternate energy OEM markets. We provide efficient, innovative solutions that focus on adding value for our customers. We emphasize service and partnership with our customers, suppliers, and employees to build long term relationships and mutual trust.
Notes:
CANopen® is a registered community trade mark of CAN in Automation e.V.
Simulink® is a registered trademark of The Mathworks, Inc.
Contact: Amanda Wilkins, Sales and Marketing Manager
TEL: +1 905 602 9270 x224
amanda.wilkins@axiomatic.com
A PDF version of this press release may be downloaded from: https://www.axiomatic.com/wp-content/uploads/pr-AX14010X-Oct12.pdf.

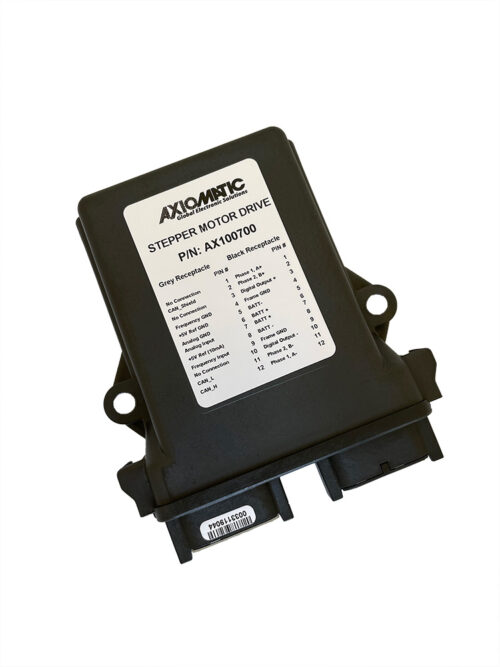

Axiomatic Technologies Corporation releases a rugged Stepper Motor Driver
Axiomatic Technologies Corporation is releasing a stepper motor controller suited for the harsh environments found in off-highway and on-road vehicle applications. The Stepper Motor Driver can be integrated into a motor drive system for precise control of fuel injection.
AXIOMATIC P/N: AX100700
A flexible design allows Axiomatic to customize the control algorithms to suit specific applications. For standard users, the unit is easily configurable using the Axiomatic Electronic Assistant service tool.
For rugged machine applications, it features the Deutsch IPD EEC-345XB enclosure and 24-pin connector. It operates with 12 or 24VDC power with surge, over and under voltage protection for battery powered devices.
The Stepper Motor Drive is designed to give the user full access to the 2A drive control chip A3979 via J1939 command messages. It allows for simple and accurate control of the levels, waveforms, timing, and phase-shifts of the current for a two phase stepper motor. Motor direction is user selectable.
The drive allows the user to set the default values for the stepper motor using the Electronic Assistant. It also allows the user to set the default targets and ranges for the run-time variables such as the step rate the motor is to run at, or the number of steps the motor is to take before holding. A unique feature of the drive is that not only are the run-time variables accessible through EA, but they can also be independently controlled by J1939 messages received while the unit is operational. This means that while the EA tool is used for initial setup and configuration, all the drive values can be changed as needed without it.
The drive also has two inputs that could be used as the command source for a run-time parameter, rather than a CAN message. Alternatively, the inputs could be used for feedback in a PID control, or as simple digital controls, for example to E-Stop the device. Lastly, they could independently be sent to the J1939 network as input data for another device on the CAN bus.
There is also 1 +5V reference and 1 Frequency or PWM input for inductive and active sensors.
Lastly, the drive has a single digital output, capable of sinking up to 5A, to drive a relay, brake or other load in a system. By default, the output is controlled by a CAN message received from the J1939 network, but it too could be controlled by one of the inputs instead. The output can be setup for a simple on/off response, or to blink indicating a fault has been detected by the drive.
Axiomatic designs and manufactures rugged electronic controls for the off-highway, power generation, bus, truck, as well as oil and gas equipment industries.
Contact: Amanda Wilkins, Sales and Marketing Manager
TEL: +1 905 602 9270 x224
amanda.wilkins@axiomatic.com
A PDF version of this press release may be downloaded from: https://www.axiomatic.com/wp-content/uploads/pr-AX100700-july2012.pdf.
Axiomatic Technologies Corporation and the G.W. Lisk Company have collaborated to release a new controller with high temperature capability
High Temperature CAN Controlled Valve Driver with Position Feedback (SAE J1939)
Axiomatic Technologies Corporation and the G.W. Lisk Company have collaborated to release a new controller with high temperature capability for under hood installation in the transportation industry.
AXIOMATIC P/N: GWL171100
G.W. LISK P/N: VY2-2837
The CAN Controlled Valve Driver with Position Feedback, or the Positional Valve Driver (PVD) is a rugged high performance, closed loop valve driver intended for use directly under the hood in a wide range of mobile applications. It is, out of box, capable of driving a hydraulic positional actuator accurately to achieve any hydraulic positioning goals.
The PVD has one configurable universal input (0-1V, 0-2.5V, 0-5V, 0-10V, 0-20mA, 4-20mA, PWM, Frequency or Digital), and one proportional current output (0-4A) for driving a control valve or a hydraulic actuator. The PVD supports CAN J1939 protocols and is fully CAN controlled. In other words, all control commands are to be taken from a connected J1939 network. Where required, the controller can also send operational status and/or positional information back to the network.
PID and control algorithm functionality was added to the module using the Simulink® software environment by The Mathworks, Company.
For rugged machine applications, it features an aluminum enclosure, gasket and a 12-pin TE Deutsch DTM15-12PA connector. It carries an IP67 rating.
The unit is configurable using the Axiomatic Electronic Assistant service tool.
As an option, a Simulink® block library is available. Simulink® is a model-based design tool from Mathworks® and allows the machine developer to model the control in their system during the design phase.
G. W. Lisk has been providing solenoid valves, LVDT’s and flame arrestors to the transportation, commercial, aerospace and other industries since 1952. Axiomatic is a mobile electronic control design engineering company and we are pleased to work with G. W. Lisk to develop this new electronic controller suited for the transportation industry.
Contact: Amanda Wilkins, Sales and Marketing Manager
TEL: +1 905 602 9270 x224
amanda.wilkins@axiomatic.com
A PDF version of this press release may be downloaded from: https://www.axiomatic.com/wp-content/uploads/pr-gwlaxio-june2012.pdf.
Axiomatic announces the appointment of their new Australian representative
Axiomatic announces the appointment of their new Australian representative, Macquarrie Corporation Pty. based out of Campbellfield, Victoria.
Macquarrie Corporation has been operating for over 60 years and has grown from a company that specialized in diesel engine reconditioning to one which now offers a multitude of products to a wide range of markets. Macquarrie Corporation has branches across the Eastern seaboard of Australia with a full complement of Engineering project staff that can develop complete solutions to meet engine control requirements.
Axiomatic provides electronic machine controls, components and systems to the off-highway, military, mining, power generation, material handling, electric vehicle, industrial and alternate energy markets.
Contacts:
Darren Lee
Macquarrie Corporation Pty Ltd
1620 Sydney Road, Campbellfield, VIC 3061 Australia
Tel: +613 9358 5555
Fax: +613 9358 5557
www.macquarrie.com.au
Amanda Wilkins, Sales and Marketing Manager
TEL: +1 905 602 9270 x224
amanda.wilkins@axiomatic.com
A PDF version of this press release may be downloaded from: https://www.axiomatic.com/wp-content/uploads/pr-macquarrie-apr12.pdf.
Axiomatic has designed a new series of controllers with high temperature capability
Axiomatic has designed a new series of controllers with high temperature capability for on engine or under hood installation and intended to be Simulink® compatible for OEM machine developers. Applications could include control of closed loop engine actuators or viscous fans.

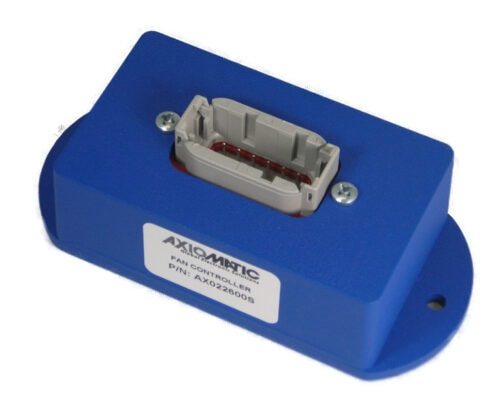

The Fan Drive Controller Platform, p/n AX022600S, accepts 2 discrete inputs, 1 Hall Effect sensor (or digital/PWM signal) input, and provides a 4A output (0-200 Hz, 50% D.C.) to drive a solenoid. The unit has a 100mA +5V reference and operates with 12 or 24VDC power. The CAN bus communication port, SAE J1939, interfaces with the engine ECM. It operates over -40 to 125°C (-40 to 257°F).
The CAN Controlled PWM Valve Driver with Feedback, SAE J1939, p/n AX022810 is designed to control an actuator. It accepts 1 universal signal input, 1 Frequency Sensor input and provides a 4A digital or PWM output to drive an actuator. Power is 12V or 24VDC nominal and the controller is networked to a CAN bus (SAE J1939). It operates over -40 to 105°C (-40 to 221°F).
For machine applications, both designs features an aluminum enclosure, encapsulation, gasket and a 12 pin TE Deutsch p/n DTM15-12PA connector. They carry an IP67 rating and environmental ratings suitable for off-highway vehicles and trucks.
Axiomatic works with Simulink® as the software development platform for prototyping in OEM machine control applications. Simulink® is a model-based design tool for from Mathworks®. It provides an interactive graphical environment and a customizable block library that lets Axiomatic design and implement application-specific control algorithms via embedded coding tools. Using Simulink®, the OEM machine designer can simulate their control system with the Axiomatic module included. This permits fine tuning of the design parameters and testing of functionality prior to machine prototype installation.
Axiomatic provides electronic machine controls, components and systems to the off-highway, military, power generation, material handling, electric vehicle, industrial and alternate energy OEM markets. We provide efficient, innovative solutions that focus on adding value for our customers. We emphasize service and partnership with our customers, suppliers, and employees to build long term relationships and mutual trust.
Contact: Amanda Wilkins, Sales and Marketing Manager
TEL: +1 905 602 9270 x224
amanda.wilkins@axiomatic.com
A PDF version of this press release may be downloaded from: https://www.axiomatic.com/wp-content/uploads/pr-AX022600S-Mar12.pdf.

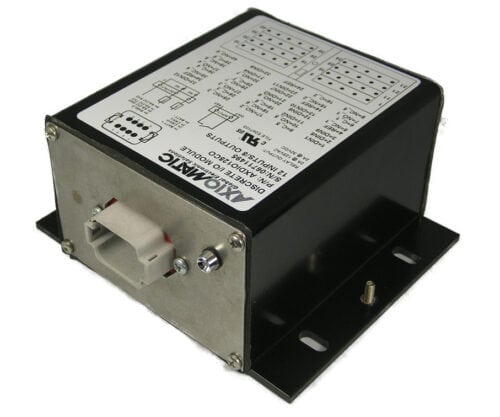

Axiomatic announces the release of the newest addition to our CANopen Engine Control Line, the AXDIO128CO
DISCRETE I/O MODULE with 8 RELAY
OUTPUTS, CANopen®
P/N: AXDIO128CO
Axiomatic’s family of rugged I/O modules for engine applications welcomes the new CANopen® Discrete I/O Module for extending power genset control networks.
The Discrete I/O Module reads 12 discrete inputs and sets 8 Form C relay outputs (2A @ 125VAC, 2A @ 277VAC or 2A @32VDC) while providing a simple interface between a CANopen® network and other electronic devices in an engine control system. The unit is an automotive battery powered device with the ability to withstand engine cranking, reverse polarity and transient power conditions. In engine applications, information is provided to the engine control system using CAN messages. Outputs can be controlled by any input or CAN messages. A bi-color LED indicates operational status. The device complies to CAN in Automation Device Profile DS-401.The power supply input is 12V, 24V or 48VDC nominal. It is encapsulated in rugged housing and is suitable for moist, high shock, vibrating and non-hazardous environments. An IP65 rating ensures rugged performance. Units are UL and cUL recognized to UL508 and C22.2 No. 142-M1987. A CE mark for the EMC and RoHS Directives is also provided.
Users program custom functionality via an .EDS file with standard service tools for CANopen® Object Dictionary.
Axiomatic provides electronic machine controls, components and systems to the off-highway, military, power generation, material handling, electric vehicle, industrial and alternate energy OEM markets. We provide efficient, innovative solutions that focus on adding value for our customers. We emphasize service and partnership with our customers, suppliers, and employees to build long term relationships and mutual trust.
